A glycol meter is an essential tool used to measure glycol concentration in HVAC systems, cooling systems, and closed loop applications. Maintaining the correct glycol concentration is critical for freeze protection, heat transfer performance, and overall system efficiency.
In most facilities, glycol is used as a heat transfer fluid in the form of a glycol solution containing either propylene glycol or ethylene glycol. Without accurate measurement, systems may operate with too little glycol, increasing freezing risk, or too much glycol, reducing heat transfer efficiency and increasing energy consumption.
This guide explains how glycol meters work, the role of refractometers, and how operators can use these tools to maintain system performance.
Why Glycol Measurement Matters
Glycol concentration directly affects the freezing point of a system. If glycol levels are not measured accurately, systems can be exposed to freezing conditions that damage piping, heat exchangers, and equipment.
At the same time, excessive glycol concentration reduces heat transfer and increases fluid viscosity, which impacts pumps and system performance.
A glycol meter allows operators to:
- Measure concentration accurately
- Determine freezing point instantly
- Maintain proper glycol levels
- Protect system components
Types of Glycol Measured
Most glycol meters are used to measure two types of fluids:
- Propylene glycol (PG)
- Ethylene glycol
Propylene glycol is commonly used in HVAC systems and food-related applications due to its lower toxicity. Ethylene glycol is often used in industrial systems where performance is prioritized.
Each fluid has a different freezing point curve, so proper calibration is required when testing different glycol solutions.
How a Glycol Meter Works
A glycol meter typically works using refractometer technology. A refractometer measures how light bends when it passes through a fluid sample.
The device uses a prism surface where a small drop of glycol solution is placed. The refractive index of the fluid changes depending on concentration.
Modern glycol meters provide:
- Digital readings
- Nearly instantaneous readout
- Automatic temperature compensation (ATC)
- Accurate freezing point measurement
Digital refractometers eliminate subjectivity compared to traditional eyepiece models and provide more consistent results.
Digital Refractometers and Measurement Accuracy
A digital refractometer is the most common glycol meter used in the field today. These instruments are designed to deliver accurate and repeatable readings.
Key features include:
- Automatic temperature compensation to adjust for fluid temperature
- Digital readings that remove interpretation errors
- Simple user interface with two buttons for operation
- Fast measurement in seconds
Some models, such as a palm abbe digital refractometer, use a custom designed microprocessor to deliver precise results across a wide measurement range.
These devices are widely used because they are easy to use, require minimal training, and provide reliable results for both propylene glycol and ethylene glycol.
Step-by-Step Use of a Glycol Meter
Using a glycol meter is a straightforward process:
- Collect a sample of the glycol solution
- Place a drop on the prism surface
- Close the prism cover
- Press the measurement button
- View digital readings on the screen
Results are displayed within seconds and can be used to determine glycol concentration and freezing point.
For best results:
- Ensure the sample is clean
- Perform calibration regularly using special calibration solutions
- Clean the prism after each test
Key Measurement Parameters
When using a glycol meter, operators focus on several parameters:
| Parameter | Why It Matters |
|---|---|
| Glycol concentration | Determines freeze protection level |
| Freezing point | Indicates safe operating temperature |
| Temperature | Affects accuracy of readings |
| Calibration | Ensures accurate measurement |
Maintaining the correct concentration ensures the system operates within the desired range for freeze protection and performance.
Interpreting Readings and Adjusting Systems
Once readings are taken, operators must interpret the data correctly. If glycol concentration is too low, additional glycol must be added to achieve the desired freeze protection level.
If glycol concentration is too high, dilution with water may be required to restore balance and improve heat transfer efficiency.
Accurate readings help operators make adjustments that improve system efficiency and protect equipment.
Common Issues with Glycol Measurement
Several issues can affect measurement accuracy:
- Improper calibration of the instrument
- Dirty prism or contaminated sample
- Temperature variations without compensation
- Incorrect fluid identification (PG vs ethylene glycol)
Using a digital refractometer with automatic temperature compensation helps reduce these issues.

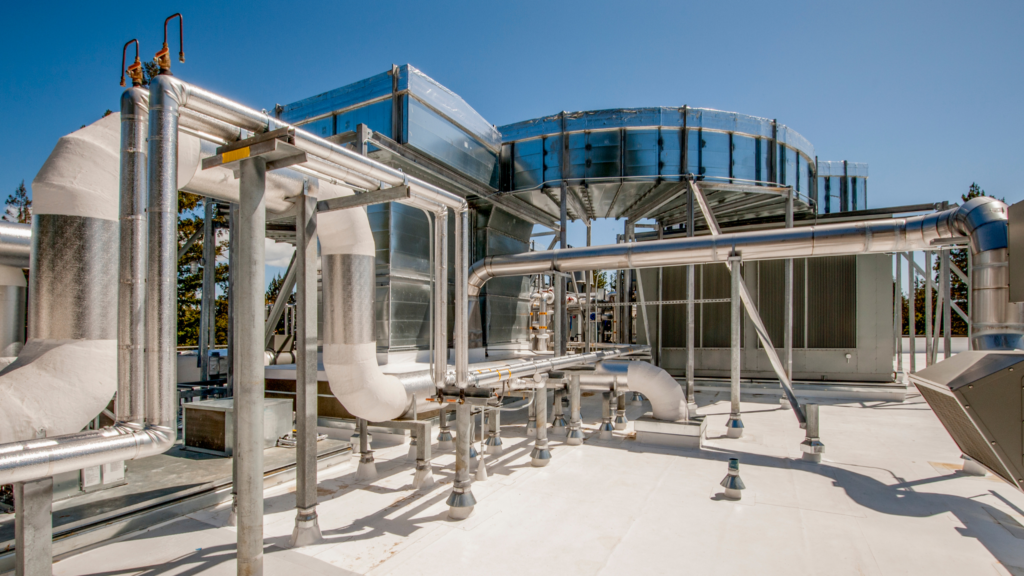

Applications in HVAC and Industrial Systems
Glycol meters are used across a wide range of applications:
- HVAC systems
- Glycol cooling systems
- Heat exchangers
- Industrial cooling processes
These systems rely on accurate glycol measurement to maintain performance and avoid system damage.
For more on how glycol functions in these systems, see:
Best Practices for Using Glycol Meters
To maintain accuracy and performance:
- Perform regular calibration
- Use clean samples for testing
- Store the instrument properly
- Verify readings periodically
Consistent testing ensures reliable operation and reduces risk of system failure.
FAQ: Glycol Meters and Measurement
What is a glycol meter used for?
A glycol meter is used to measure glycol concentration and determine freezing point in HVAC and industrial systems.
How accurate are digital refractometers?
Digital refractometers provide accurate readings when properly calibrated and maintained.
How often should glycol be tested?
Glycol should be tested regularly depending on system use, typically during routine maintenance checks.
What happens if glycol concentration is too low?
Low glycol concentration increases freezing risk and can damage system components.
Can one meter test both propylene glycol and ethylene glycol?
Yes, most digital refractometers can measure both, but proper calibration and settings must be used.
Maintain Accurate Glycol System Performance
A glycol meter is a simple but critical tool for maintaining system performance. Accurate measurement of glycol concentration ensures proper freeze protection, efficient heat transfer, and long-term equipment reliability.
